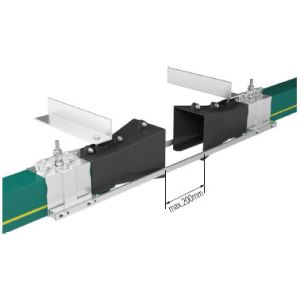

NANTE HFP56 Conductor Rail System , Self-extinguishing PVC
Quick Details
- Standard length; 4m or 6m.
- Current: 35A~240A
- Conductor material: copper
- Single powerline, easytrack, single flexline, multiline, boxline
Detailed Product Description
Nante HFP56 Conductor Rail System copper conductor for indoor plants is manufactured in green plastic-housings for 4 and 5 poles. At up to 100 A we can supply the Powerail with plug-in joints. Otherwise, the sections are connected bolted joints.
Type KSLT for indoor and outdoor plants is manufactured in grey plastic-housings for 4 and 5 poles.
Compact arrangement, corrosion resistance and simple assembly are its essential features. T
Application
The ranges of applications of HFP Power Rail Enclosed Conductor System
- Overhead and elongated tracks for cranes.
- Electric hoists, electric tools, stacking systems.
- Electric tools
- Other applications for supplying power to moving power load.
Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Expansion during temperature fluctuation
Expansion joints are used when the Powerail length between feeds,curves,switches or other fix points is exceeding 20m.Install one expansion joint every 100m.
Anti-condensation sections
These sections are used for transfer of the Powerail to outdoor areas to avoid condensation.
The Powerail is not separated electrically.
Sectionalizing
Available as air gap version (5mm),where the collector carbon bridges the gap,e.g.for mains.
Also available as insulating piece version (35mm).
Current collectors
The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.
Spring loaded carbon brushes maintain uniform contact.
HFP56 Conductor Rail System , Self-extinguishing PVC
Technical Parameters
| Model |
Pole No. |
Cross section |
Max. current |
Leakage-distance |
Max. voltage |
Resistance |
Dimensions (H * W) |
Weight |
| HFP56-4-8/35 |
4 |
8 |
35 |
35 |
600 |
1.944 |
73*56 |
2.09 |
| HFP56-4-10/50 |
4 |
10 |
50 |
35 |
600 |
1.656 |
73*56 |
2.16 |
| HFP56-4-12/65 |
4 |
12 |
65 |
35 |
600 |
1.321 |
73*56 |
2.23 |
| HFP56-4-15/80 |
4 |
15 |
80 |
35 |
600 |
1.137 |
73*56 |
2.3 |
| HFP56-4-20/100 |
4 |
20 |
100 |
33 |
600 |
1.011 |
73*56 |
2.43 |
| HFP56-4-25/120 |
4 |
25 |
120 |
33 |
600 |
0.713 |
73*56 |
2.56 |
| HFP56-4-35/140 |
4 |
35 |
140 |
33 |
600 |
0.522 |
73*56 |
2.95 |
| HFP56-4-50/170 |
4 |
50 |
170 |
33 |
600 |
0.337 |
73*56 |
3.25 |
| HFP56-4-70/210 |
4 |
70 |
210 |
33 |
600 |
0.265 |
73*56 |
3.85 |
| HFP56-4-80/240 |
4 |
80 |
240 |
30 |
600 |
0.223 |
73*56 |
4.16 |
| HFP56-3-10/50 |
3 |
10 |
50 |
45 |
600 |
1.656 |
73*56 |
1.95 |
| HFP56-3-15/80 |
3 |
15 |
80 |
45 |
600 |
1.137 |
73*56 |
2.13 |
| HFP56-3-20/100 |
3 |
20 |
100 |
45 |
600 |
1.011 |
73*56 |
2.24 |
| HFP56-3-25/120 |
3 |
25 |
120 |
45 |
600 |
0.713 |
73*56 |
2.37 |
| HFP56-3-35/140 |
3 |
35 |
140 |
45 |
600 |
0.522 |
73*56 |
2.63 |
| HFP56-3-50/170 |
3 |
50 |
170 |
45 |
600 |
0.337 |
73*56 |
3.02 |
