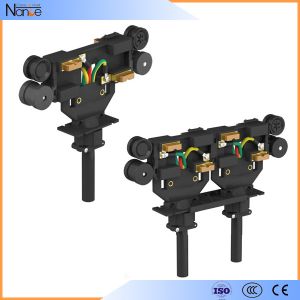

Conductor Rail Mobile Electrification For Electric Tools
Quick Details
- Standard length; 4m or 6m.
- Current: 35A~240A
- Conductor material: copper
- Support spacing: 1.2m
Detailed Product Description
Conductor rails power line system are available with any desired number of poles and in any desired length, and they are designed for simple, easy installation. Rails feature robust construction and are suitable for use in harsh industrial environments. Heavy-duty connective elements guarantee reliable transmission without interruption for problem-free operation.
Design features
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Couplings
Through PVC joint caps.
Feed Sets
Line feeds or end feeds.
End caps
The open ends of the powerail are closed by end caps for HFP.
Hangers
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations:1200mm.
Conductor Rail Mobile Electrification
Technical Parameters
| Model |
Pole No. |
Cross section |
Max. current |
Leakage-distance |
Max. voltage |
Resistance |
Dimensions (H * W) |
Weight |
| HFP56-4-8/35 |
4 |
8 |
35 |
35 |
600 |
1.944 |
73*56 |
2.09 |
| HFP56-4-10/50 |
4 |
10 |
50 |
35 |
600 |
1.656 |
73*56 |
2.16 |
| HFP56-4-12/65 |
4 |
12 |
65 |
35 |
600 |
1.321 |
73*56 |
2.23 |
| HFP56-4-15/80 |
4 |
15 |
80 |
35 |
600 |
1.137 |
73*56 |
2.3 |
| HFP56-4-20/100 |
4 |
20 |
100 |
33 |
600 |
1.011 |
73*56 |
2.43 |
| HFP56-4-25/120 |
4 |
25 |
120 |
33 |
600 |
0.713 |
73*56 |
2.56 |
| HFP56-4-35/140 |
4 |
35 |
140 |
33 |
600 |
0.522 |
73*56 |
2.95 |
| HFP56-4-50/170 |
4 |
50 |
170 |
33 |
600 |
0.337 |
73*56 |
3.25 |
| HFP56-4-70/210 |
4 |
70 |
210 |
33 |
600 |
0.265 |
73*56 |
3.85 |
| HFP56-4-80/240 |
4 |
80 |
240 |
30 |
600 |
0.223 |
73*56 |
4.16 |
| HFP56-3-10/50 |
3 |
10 |
50 |
45 |
600 |
1.656 |
73*56 |
1.95 |
| HFP56-3-15/80 |
3 |
15 |
80 |
45 |
600 |
1.137 |
73*56 |
2.13 |
| HFP56-3-20/100 |
3 |
20 |
100 |
45 |
600 |
1.011 |
73*56 |
2.24 |
| HFP56-3-25/120 |
3 |
25 |
120 |
45 |
600 |
0.713 |
73*56 |
2.37 |
| HFP56-3-35/140 |
3 |
35 |
140 |
45 |
600 |
0.522 |
73*56 |
2.63 |
| HFP56-3-50/170 |
3 |
50 |
170 |
45 |
600 |
0.337 |
73*56 |
3.02 |
|
HFP Series Multiple-Poles Conductor Rail System
|
|
Max. voltage
|
600v
|
Bending strength
|
75N/mm²±10%
|
|
Dielectric strength
|
30-40kv/mm
|
Tensile strength
|
40N/mm²±10%
|
|
Special resistance
|
5×1015 Ohm×cm
|
Leakage resistance
|
CTI600-2,7
|
|
Surface resistance
|
1013 Ohm×cm
|
Design and Manufacturing Standard
|
GB7251.2-2006
|
|
Distance between each suspension bracket (m)
|
1.2
|
Rail length per piece (m)
|
4
|
|
Flame retardant
|
Class B1-no flaming particles, self-extinguishing
|
|
Permissible Ambient temperature
|
Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation -40℃- +80℃
|
